To display graphical NOTAMs on the Maps page in ForeFlight Mobile, the following criteria must be met:

• The NOTAM map layer must be enabled.
• The NOTAM must be within two hours of becoming active.
• The NOTAM type must be graphically supported.

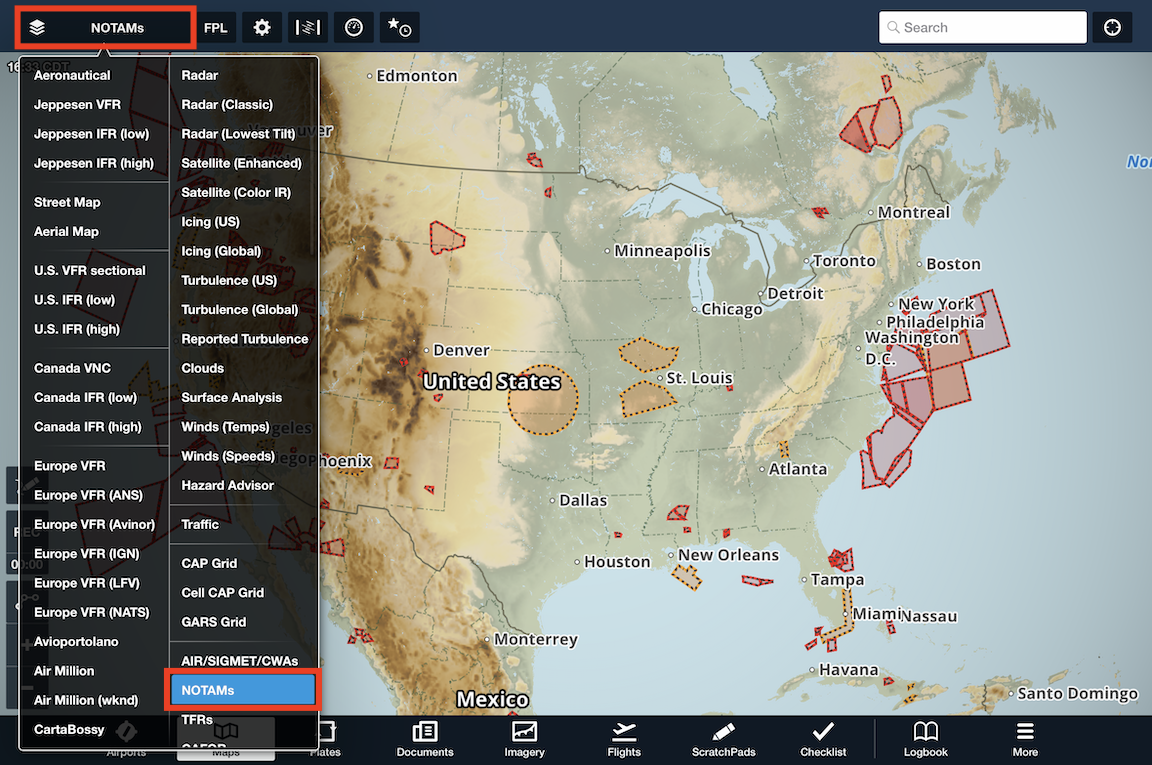

Enabling the NOTAMs Map Layer

To enable the NOTAMs map layer:

1. Open ForeFlight Mobile.
2. Go to the Maps page.
3. From the drop-down in the upper left, select the NOTAMs layer.

NOTAM Active Time

NOTAMs are not shown on the Maps page until the NOTAM is within two hours of becoming active.

Supported NOTAM Types

Only certain NOTAMs are supported graphically in ForeFlight Mobile. The types supported are:

• Airspace NOTAMs
• Airspace Restriction NOTAMs
• Warning NOTAMs
• Other NOTAMs (Obstacles and Obstacle Lights)

When obtaining a PDF briefing in ForeFlight Mobile, the NOTAM code will be listed (if available) in the NOTAM description. If the code type in the description matches one of the types in the tables below, then the NOTAM is supported graphically. It will not be shown if it is not of the type listed in one of the tables below.

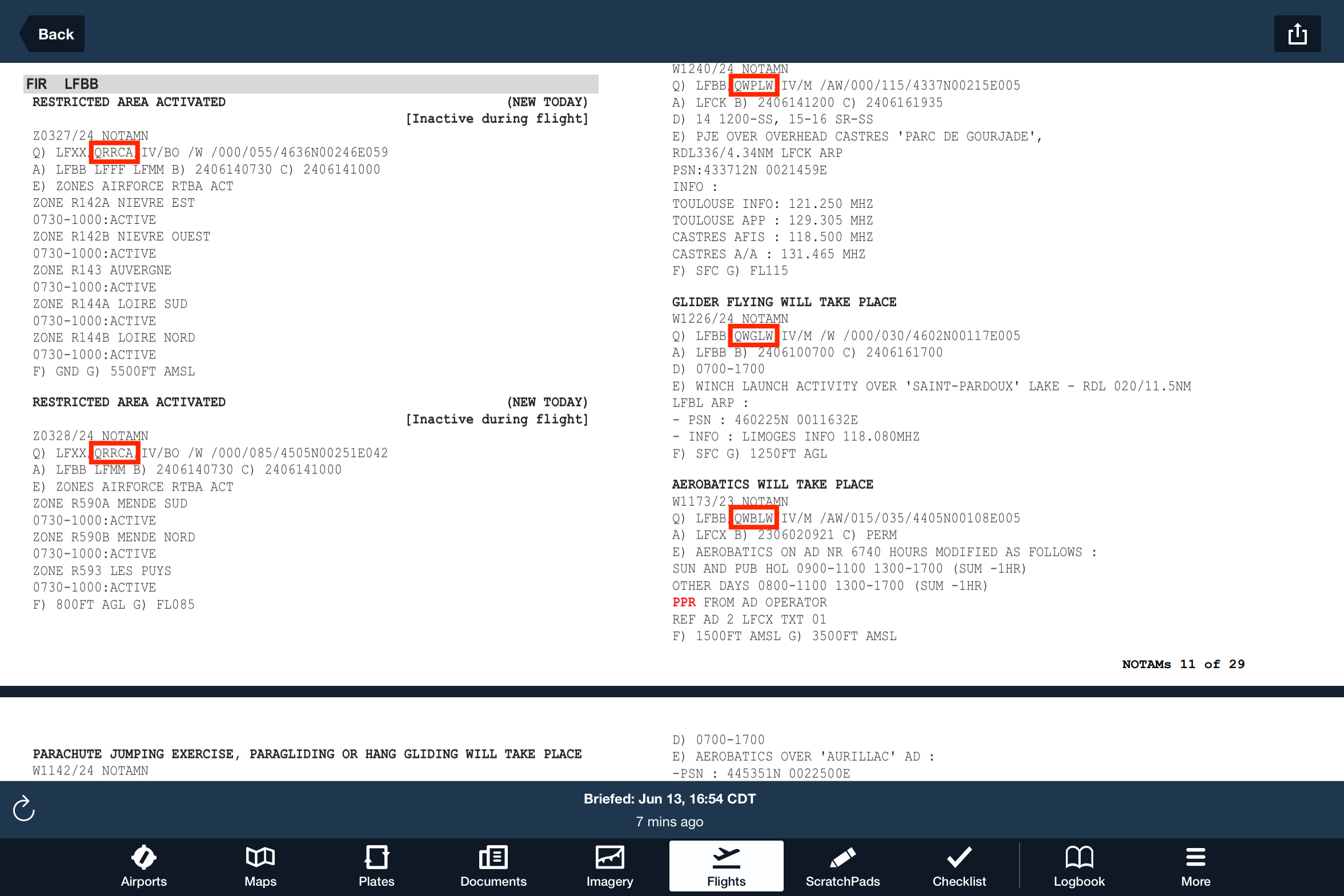

Location of NOTAM Codes in a PDF Briefing

The tables in this section list those NOTAM types graphically supported in ForeFlight Mobile. NOTAMs formatted in the ICAO standard are classified by:

• Type
• Subtype
• Status

Each unique classification has an associated code. If a NOTAM has a code (prefaced with a Q) defined in a table, it will be available graphically in ForeFlight Mobile.

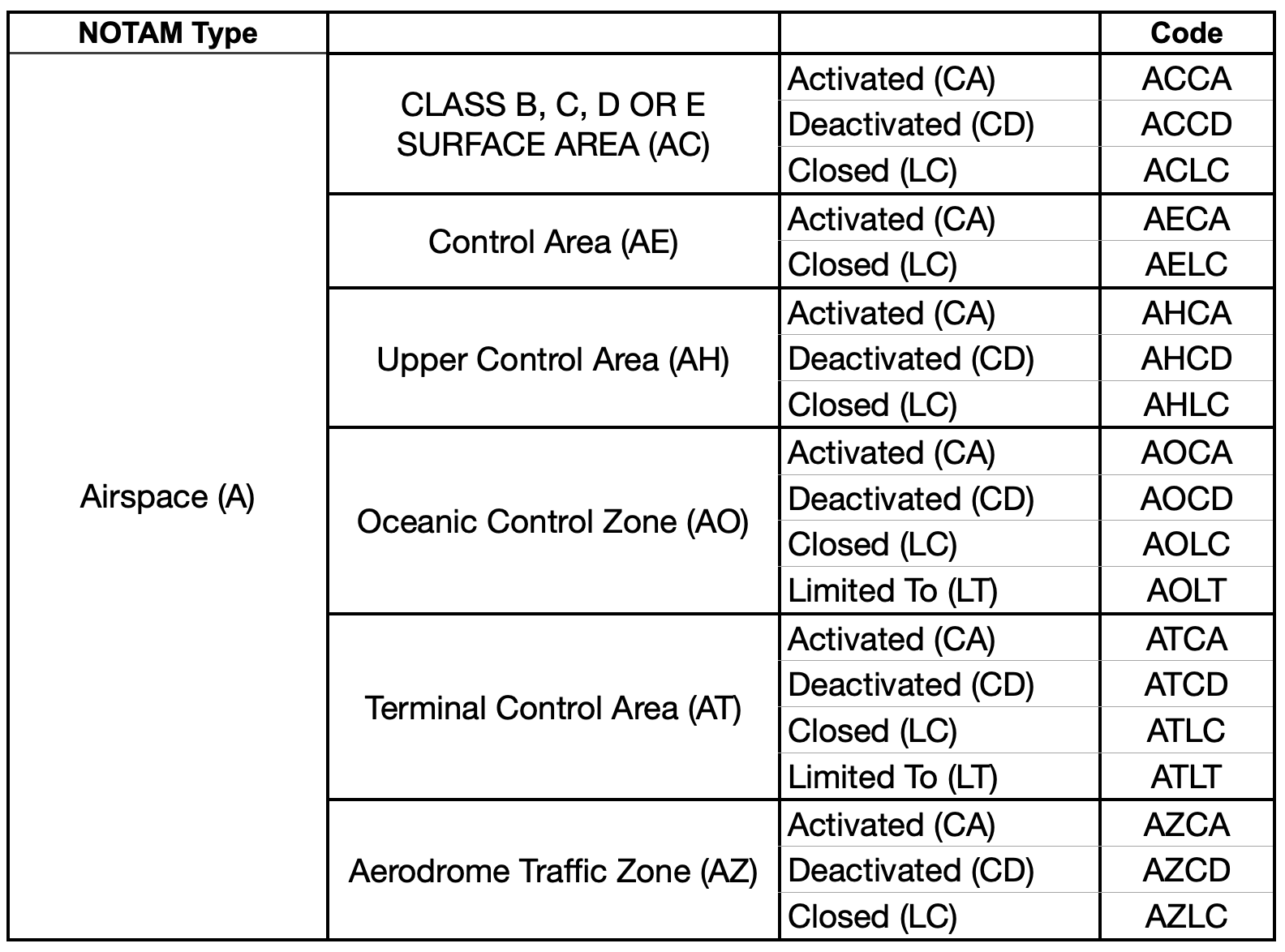

Supported Airspace NOTAMs

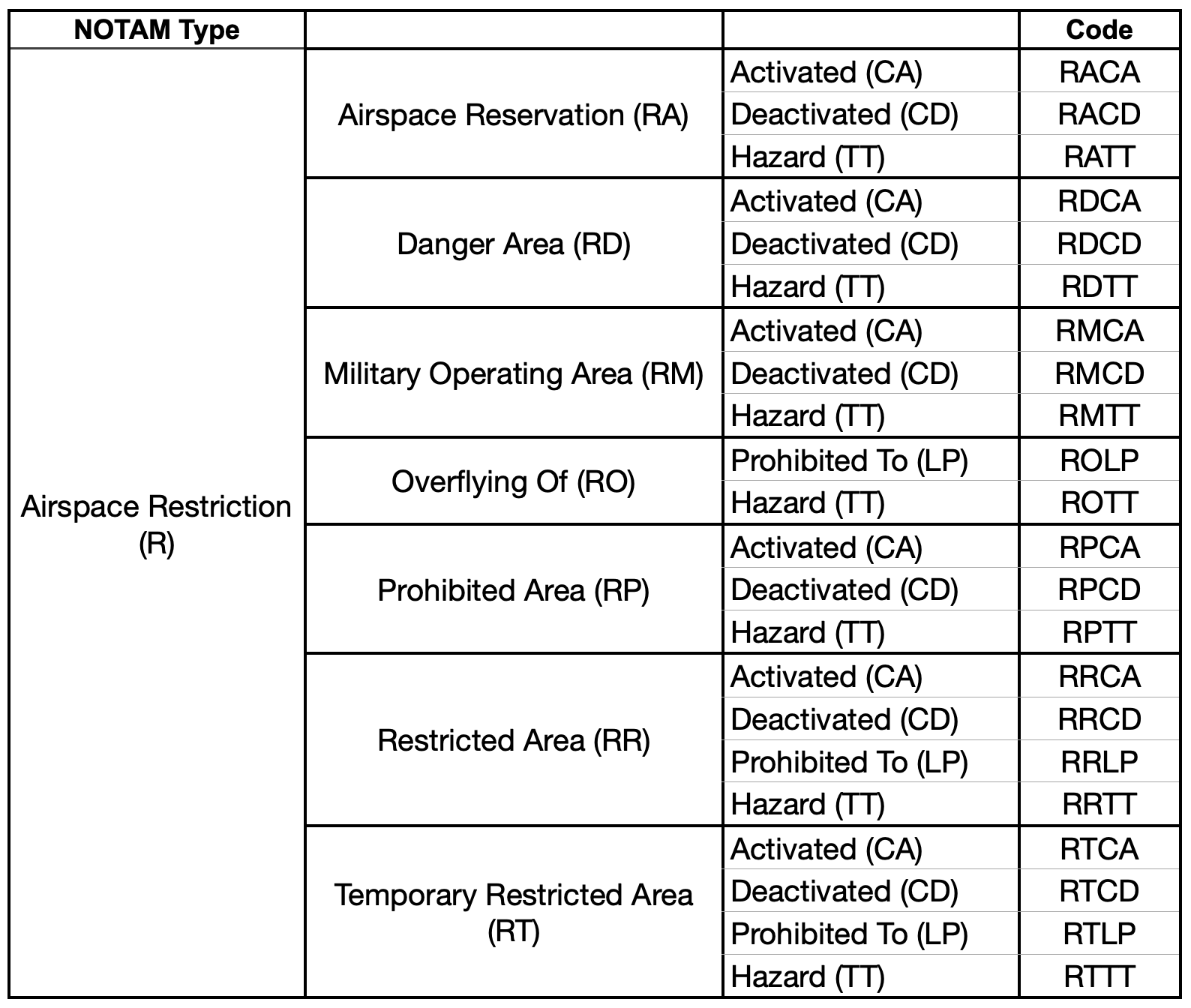

Supported Airspace Restriction NOTAMs

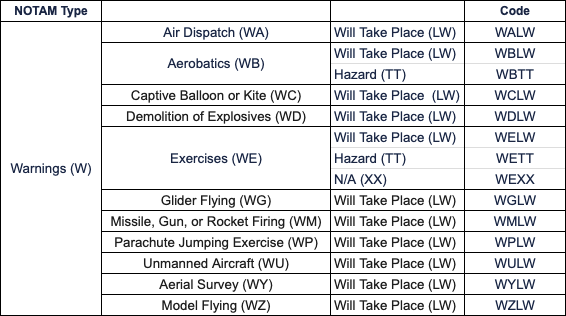

Supported Warning NOTAMs

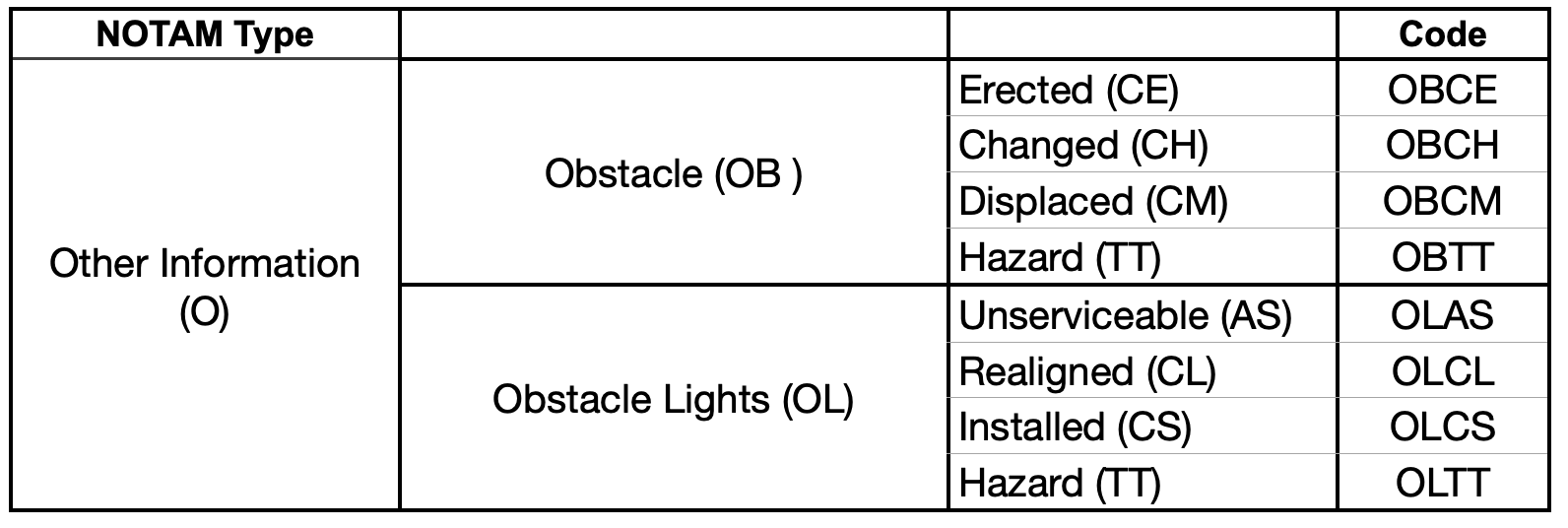

Supported Other NOTAMs

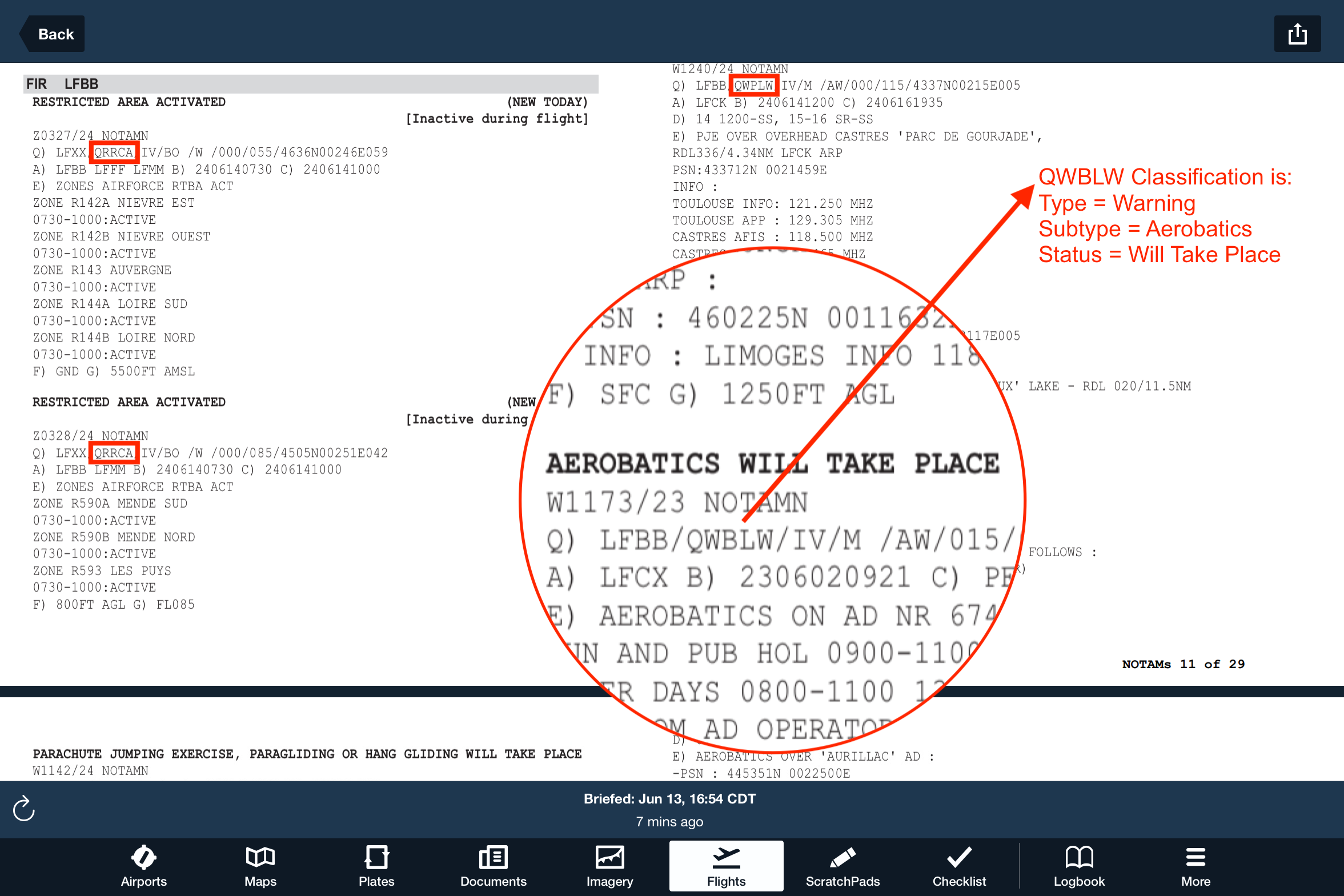

The following image shows the location of a NOTAM code and a breakdown of the meaning derived from the tables above. The example NOTAM is supported graphically.
