There are eight gates around the D.C. SFRA. They are:
- BRV Gate
- FLUKY Gate
- GRUBY Gate
- JASEN Gate
- LUCKE Gate
- PALEO Gate
- WHINO Gate
- WOOLY Gate
To find the D.C. SFRA gates in ForeFlight Mobile, perform the following:
STEP 1: Go to the Maps view.
STEP 2: Select the U.S. VFR Sectional from the map selector drop-down in the upper left.
STEP 3: Select the Settings button in the upper left (Looks like a gear).
STEP 4: Select Map Touch Action.
STEP 5: Select Bring chart to front or Bring chart to front with legend.
STEP 6: Zoom into the Washington D.C. (KDCA) area.
STEP 7: Tap the map near KDCA to bring the D.C. Terminal Area Chart to the foreground.

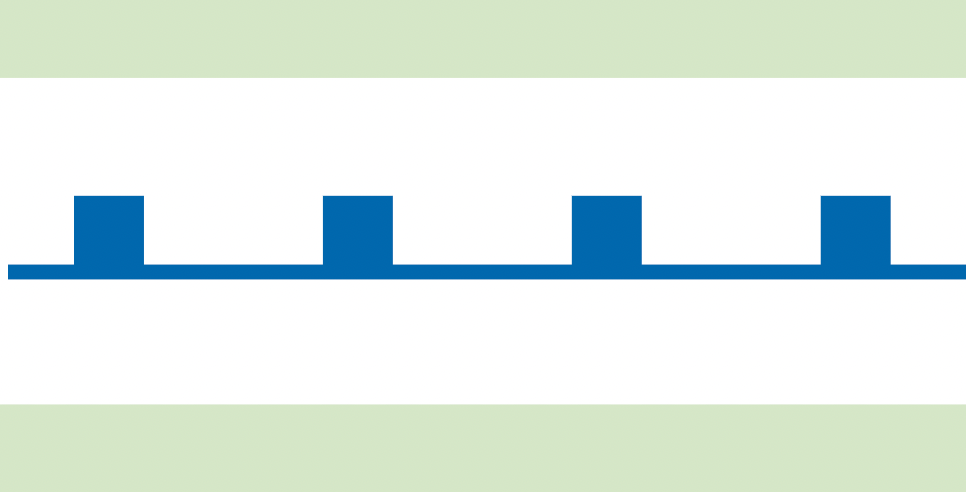

STEP 8: Look for the DC SFRA ring. The D.C. SFRA ring has a 30nm radius around the DCA VOR and is shown as a white ring with a blue boxed line.
STEP 9: Zoom in on the map where the flight is expected to penetrate the D.C. SFRA. Look for the nearest DC SFRA Gate for the route of flight.

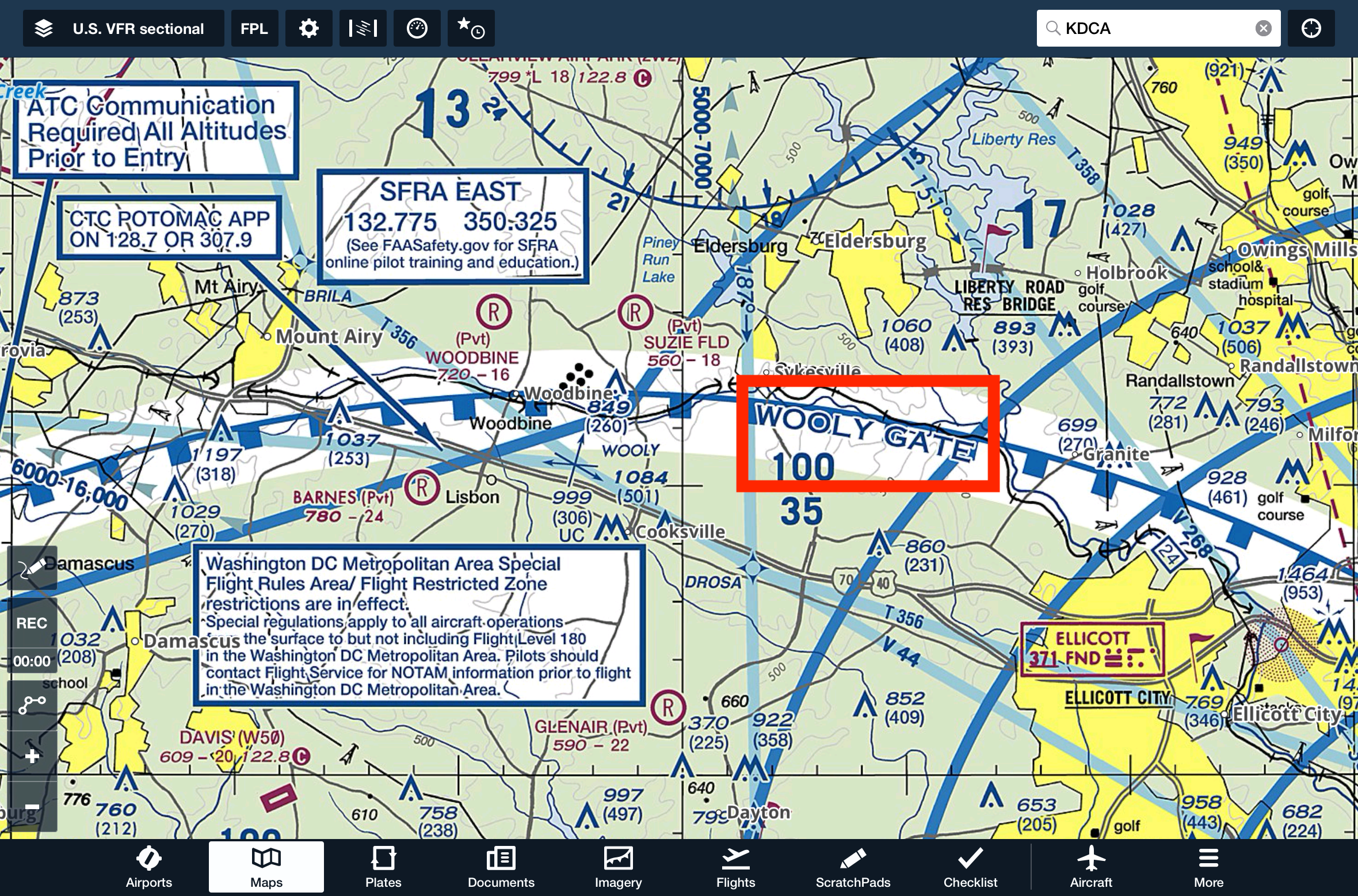

Wooly Gate is shown on the D.C. Terminal Area Chart
