How can ForeFlight's Aeronautical Map layer be enabled and customized for VFR flight in Europe?

ForeFlight's global Aeronautical map layer contains Jeppesen navigation data for VFR flying. This article covers how to turn on and customize the Aeronautical map layer for VFR flight.

Displaying the Aeronautical Map Layer

To display the Aeronautical map layer:

Open ForeFlight Mobile.
Go to the Maps page.
Select the map layer selector from the dropdown in the upper left corner.
Select the Aeronautical map layer.

Aeronautical Layer.PNG

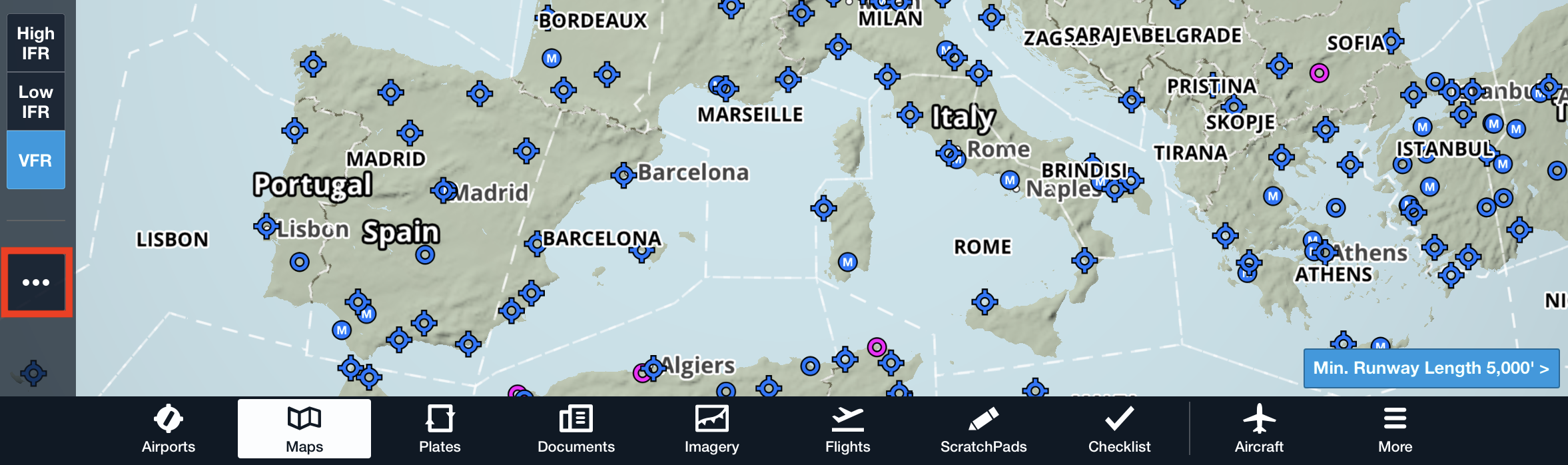

Aeronautical Map Layer Enabled on the Maps Page

Settings for VFR Flight

To set up ForeFlight's global Aeronautical map layer, follow these steps:

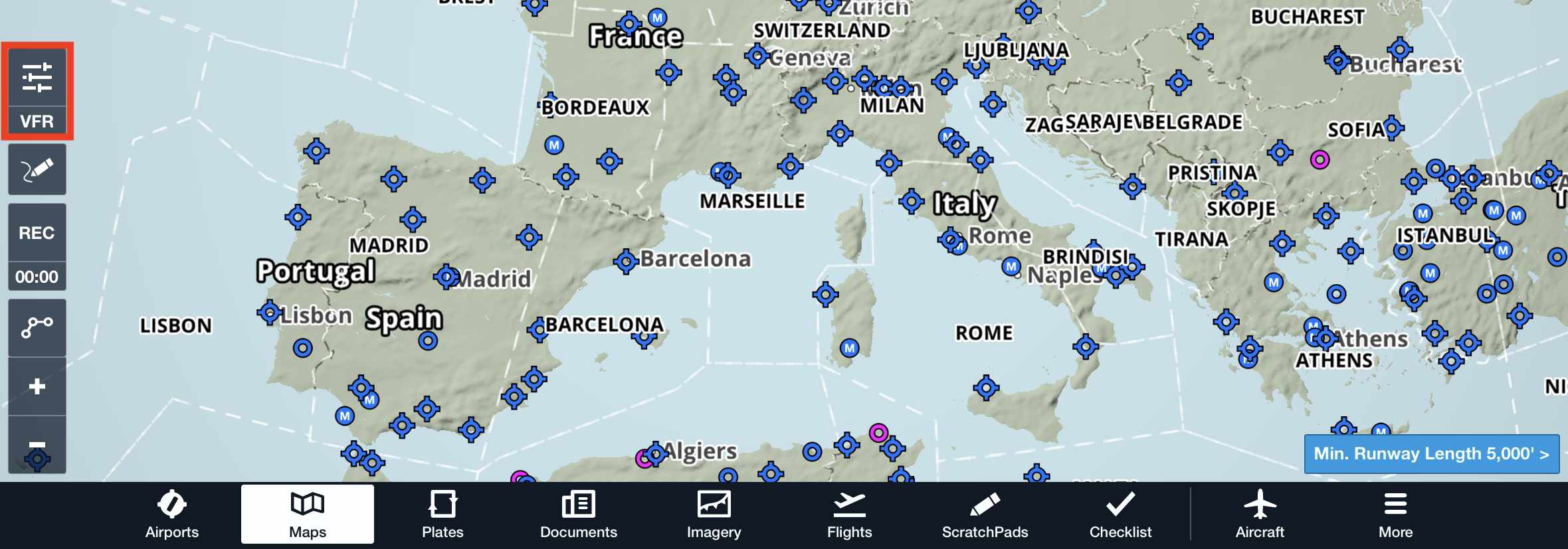

STEP 1: With the Aeronautical map layer selected on the Maps page, tap on the Map customization button on the left (the button has an image of three sliders along with the text High, Low, or VFR).

Mode Selector.PNG

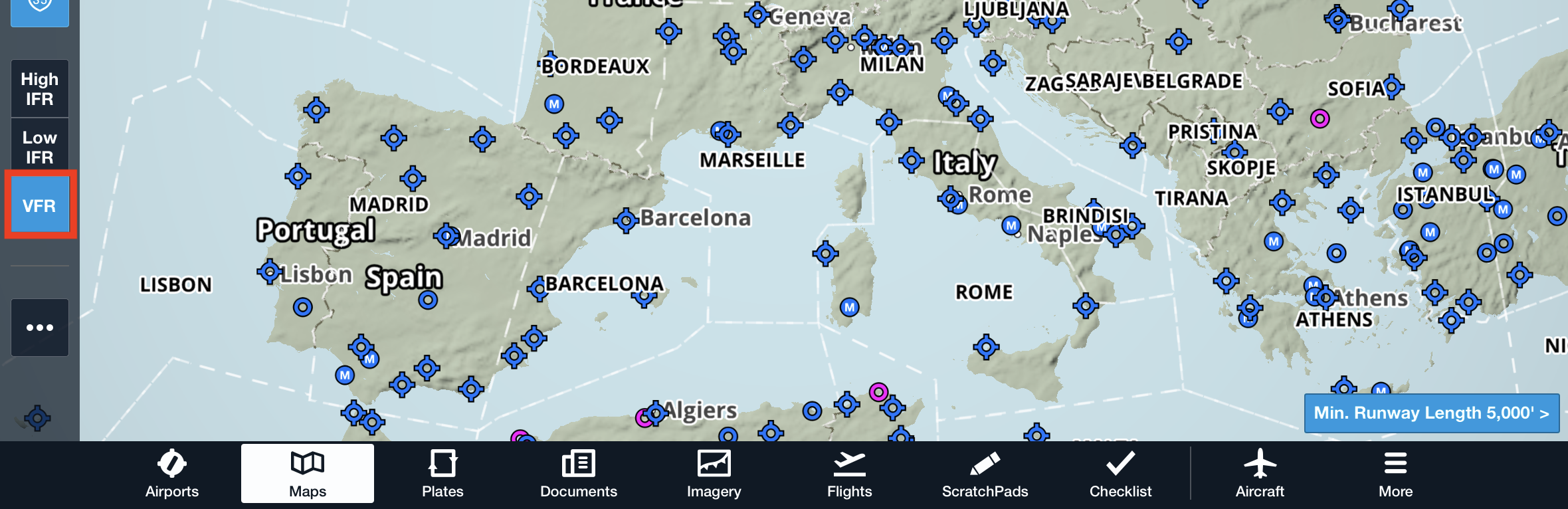

STEP 2: Select VFR.

VFR Selection.PNG

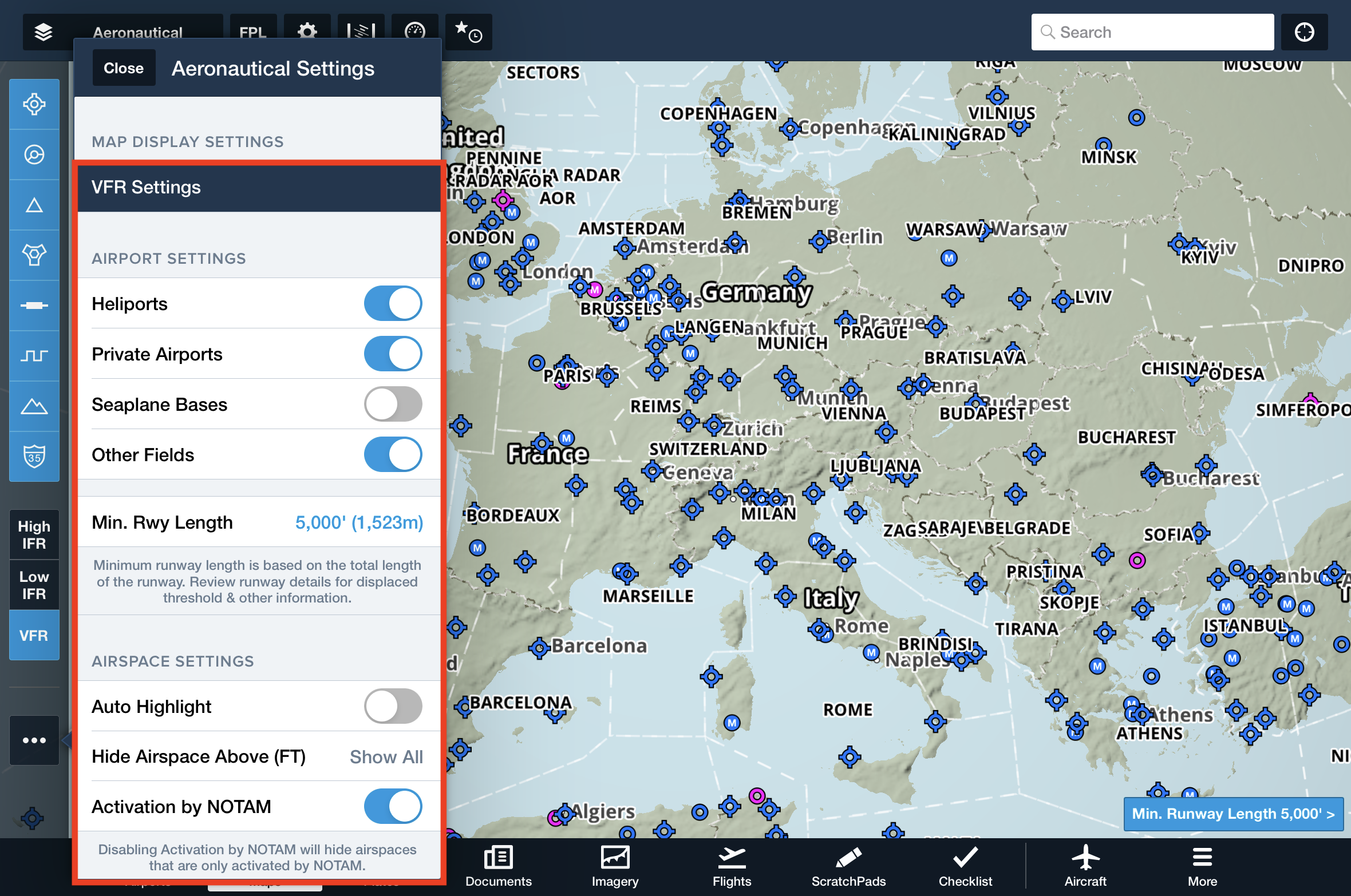

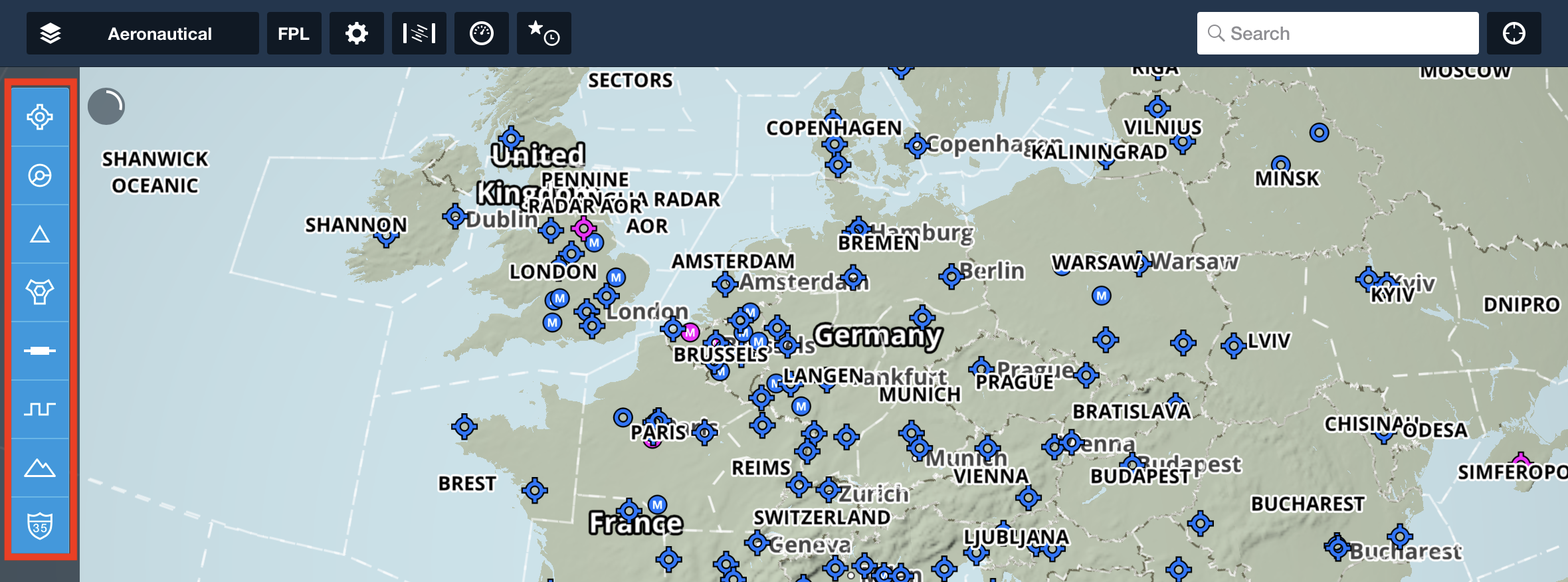

STEP 3: Select the elements to display on the Aeronautical layer. The options are Airports, Airspace, Waypoints, Navaids, Airways, ARTCC/FIR, Terrain, and Roads.
