Creating a KML Shape File from existing user waypoints ensures waypoints remain visible on the map. Without using a KML Shape File, ForeFlight dynamically declutters user waypoints in the map view. Using KML Shape Files prevents this decluttering and allows for customization (e.g., colors, icons), making it easier to distinguish waypoints.
Converting In-app User Waypoints to a Shape File
To create a KML Shape File of user waypoints in ForeFight Mobile to use as a map layer, use the following steps.
STEP 1. Open ForeFlight Mobile.
STEP 2. Go to More > Custom Content > User Waypoints.

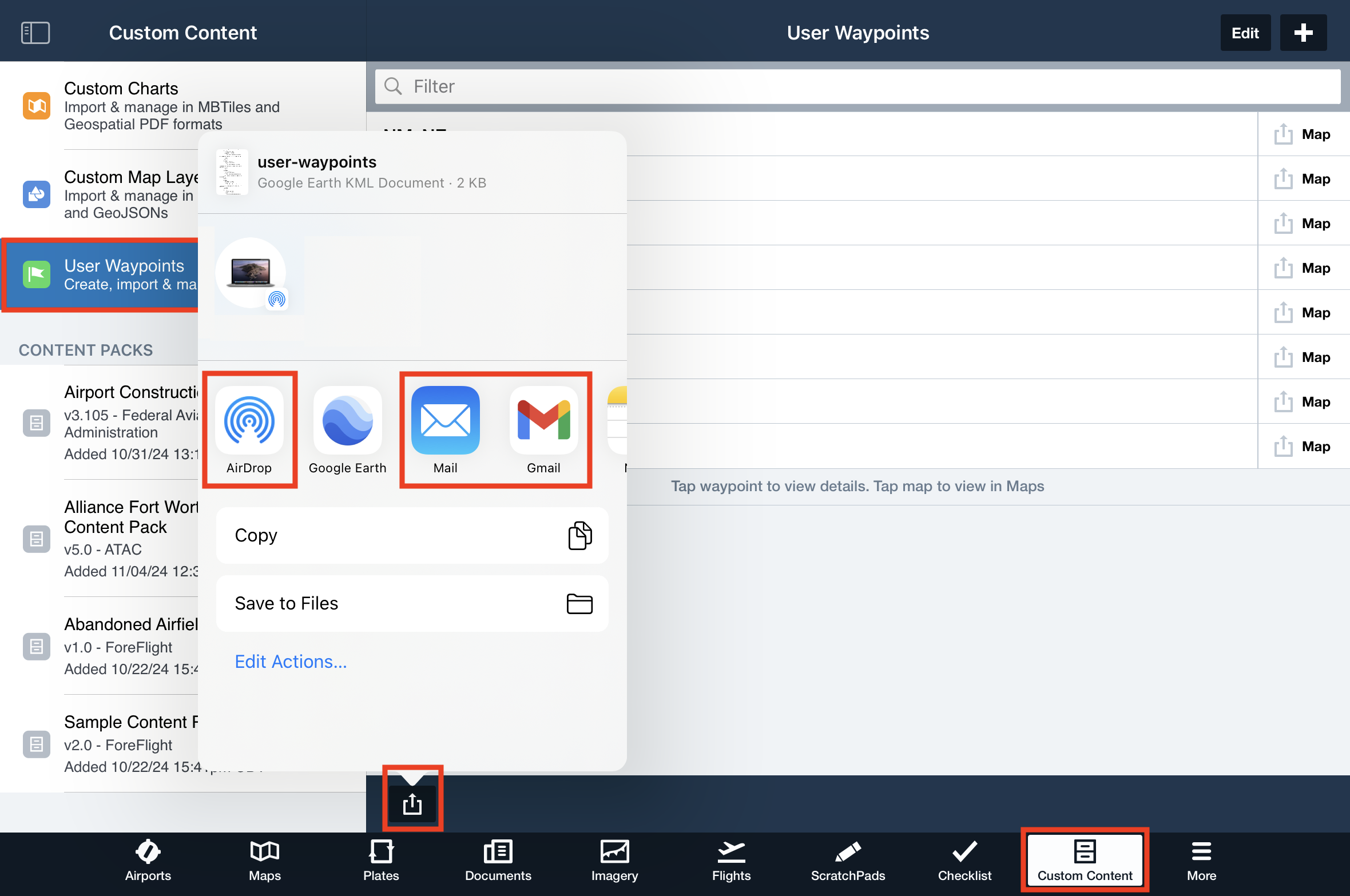

STEP 3. Select the Send To button (square with an up arrow).
STEP 4. Select the Mail button (or another share option).
STEP 5. Send the KML file to an accessible location on a Mac or PC.
STEP 6. Save the KML file on the computer.

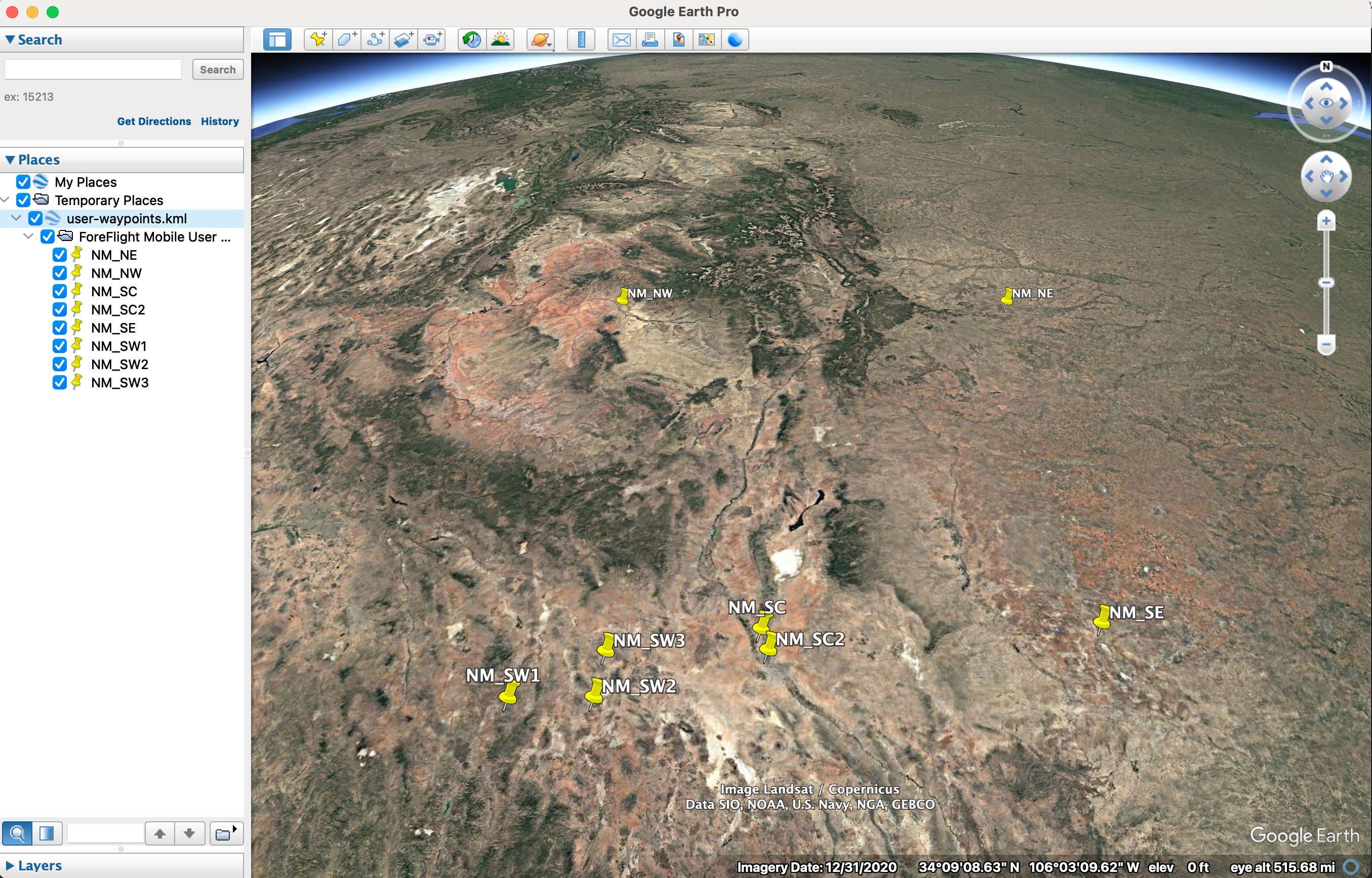

STEP 7. Open the file in Google Earth.

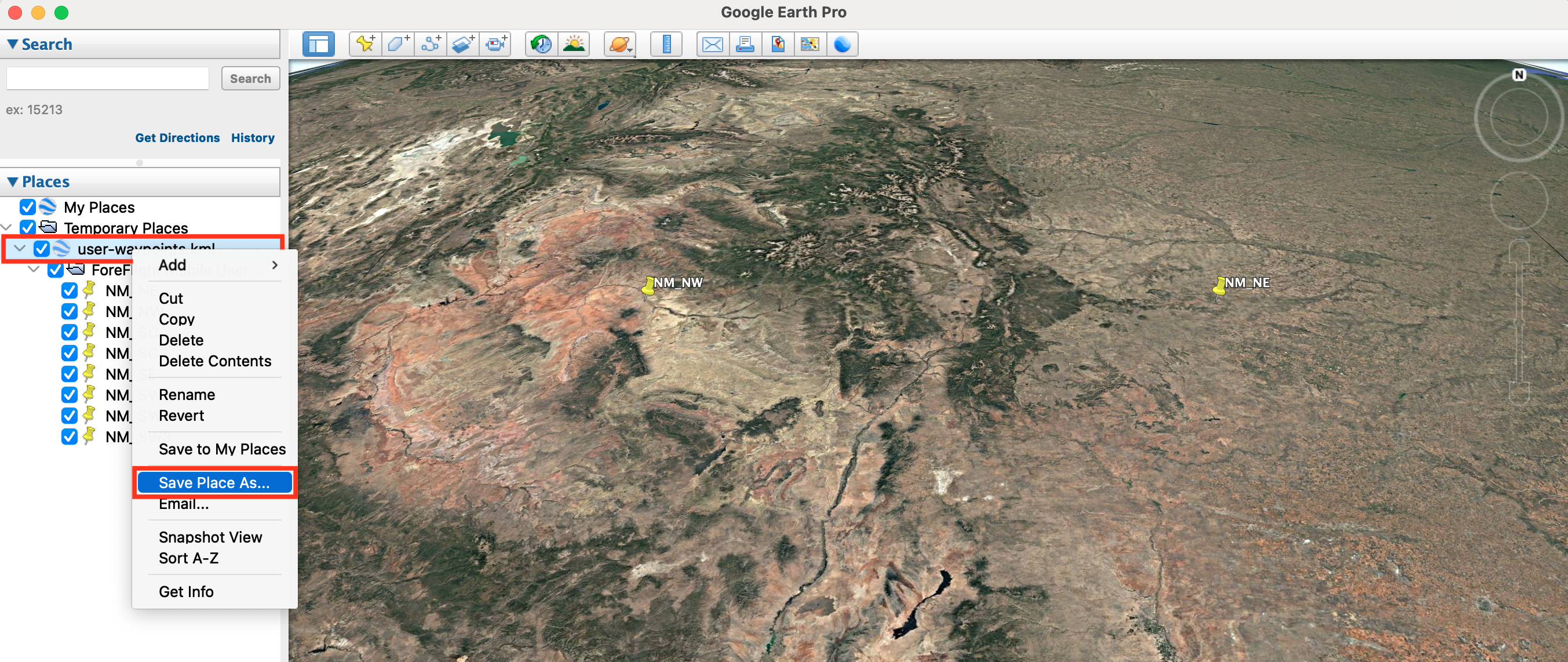

STEP 8. Go to the Places section, right-click on user-waypoints.kml.
STEP 9. Select Save Place As...

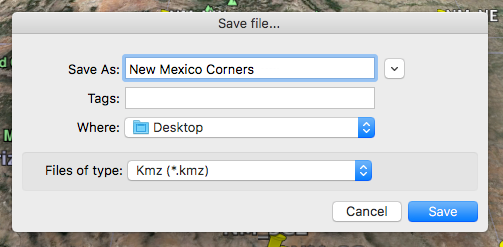

STEP 10. Give the file a name.

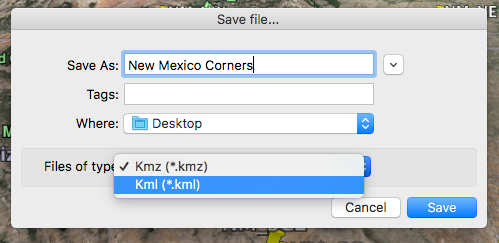

STEP 11. Choose Kml (*.kml) next to "Files of Type".
STEP 12. Select Save.
STEP 13. Import the file as a shape file into ForeFlight. For instructions, see:
How can User Map Shapes, KML, or KMZ Shape files be imported?
User waypoint shape file within ForeFlight.
