Why am I missing graphical NOTAMs on the Maps View?

To display graphical NOTAMs on the map, the following criteria must be met:

  • ForeFlight version 14.4 or later installed
  • NOTAM map layer must be enabled
  • NOTAM must be within two hours of becoming active
  • NOTAM type must be graphically supported

Supported NOTAM Types

NOTAMs formatted in the ICAO standard are classified by type and status. Only certain NOTAMs are supported graphically in ForeFlight Mobile. Refer to the table below to determine if a NOTAM is graphically supported.


Supported Airspace NOTAMs


Supported Airspace Restriction NOTAMs


Supported Warning NOTAMs

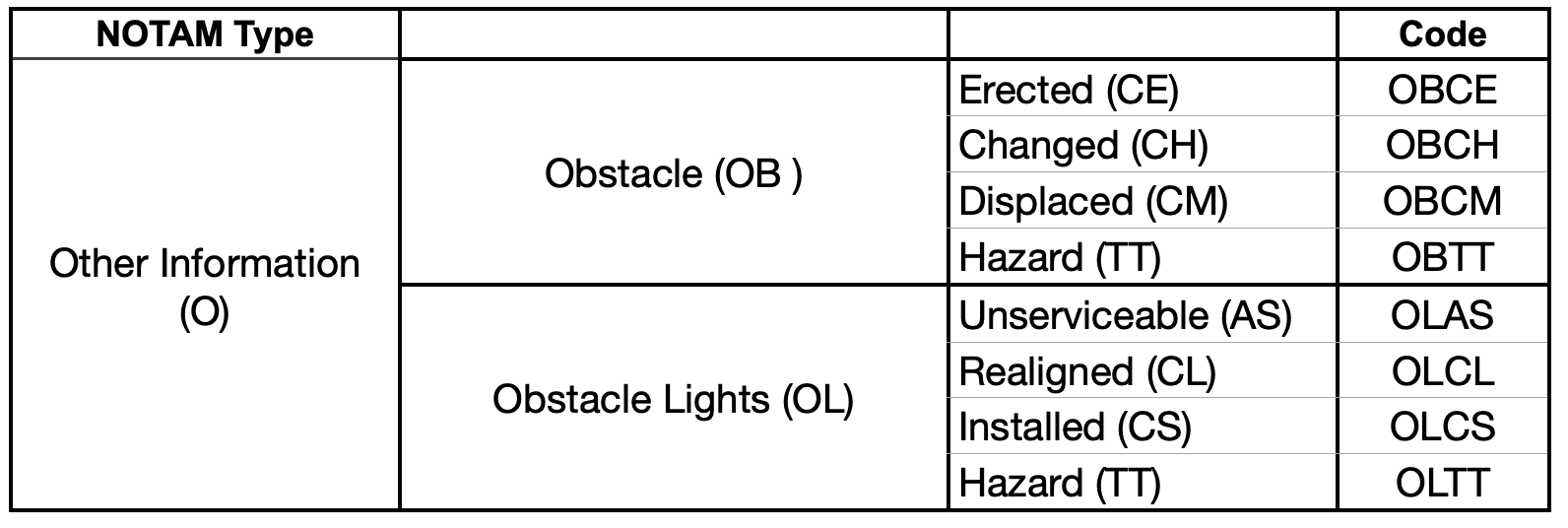

Supported Other NOTAMs

NOTE: If a type of NOTAM is not listed in the tables above, it is not depicted graphically.

NOTE: NOTAMs formatted in the ICAO standard are classified by a 5-digit code beginning with the letter Q. ForeFlight uses the code to determine if it should be depicted graphically.
