How do I create a waypoint using the intersection of two VOR radials?

To enter a waypoint defined by two crossing VOR radials, enter the waypoint as:

     VOR #1 ID/3 digit radial/VOR #2 ID/3 digit radial

or

     VOR #1 ID 3 digit radial/VOR #2 ID 3 digit radial

For example, to enter a waypoint where the Fillmore (FIM) VOR 250 degree radial crosses the Ventura (VTU) 347-degree radial, enter the waypoint as follows:

     FIM/250/VTU/347

or

     FIM250/VTU347

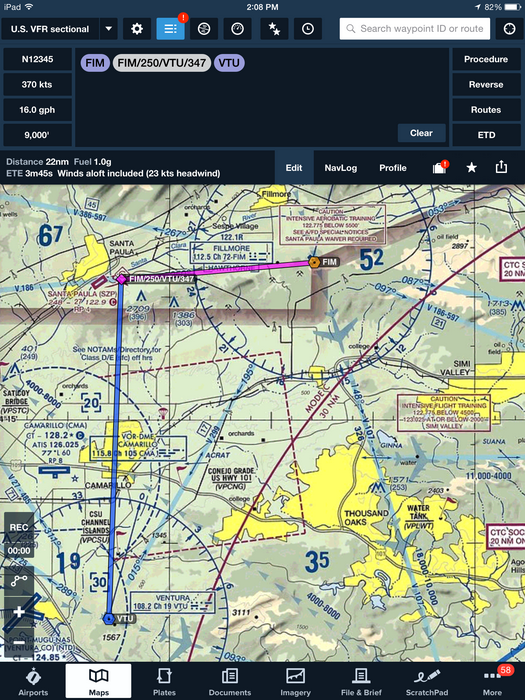

Image 1. Entering a waypoint based upon intersecting VOR radials.
