To view Jeppesen plates (terminal charts) and Jeppesen Airway Manuals in ForeFlight on the Web, both a ForeFlight subscription and Jeppesen coverage are required. Jeppesen coverage can be purchased via ForeFlight's website:

     Jeppesen Charts on ForeFlight Web

Alternatively, a Jeppesen account with an active subscription can be linked to a ForeFlight account. See the following article for details:

    How can a Jeppesen subscription be linked using ForeFlight on the Web?

After linking a Jeppesen account to your ForeFlight account, you must activate Jeppesen coverage for use in ForeFlight on the web. See the following article for details:

    How can Jeppesen coverage be activated or switched using ForeFlight on the Web?

Viewing Jeppesen Terminal Charts

To view Jeppesen Terminal Charts (approach plates), follow these steps:

STEP 1: Sign in to ForeFlight on the Web.

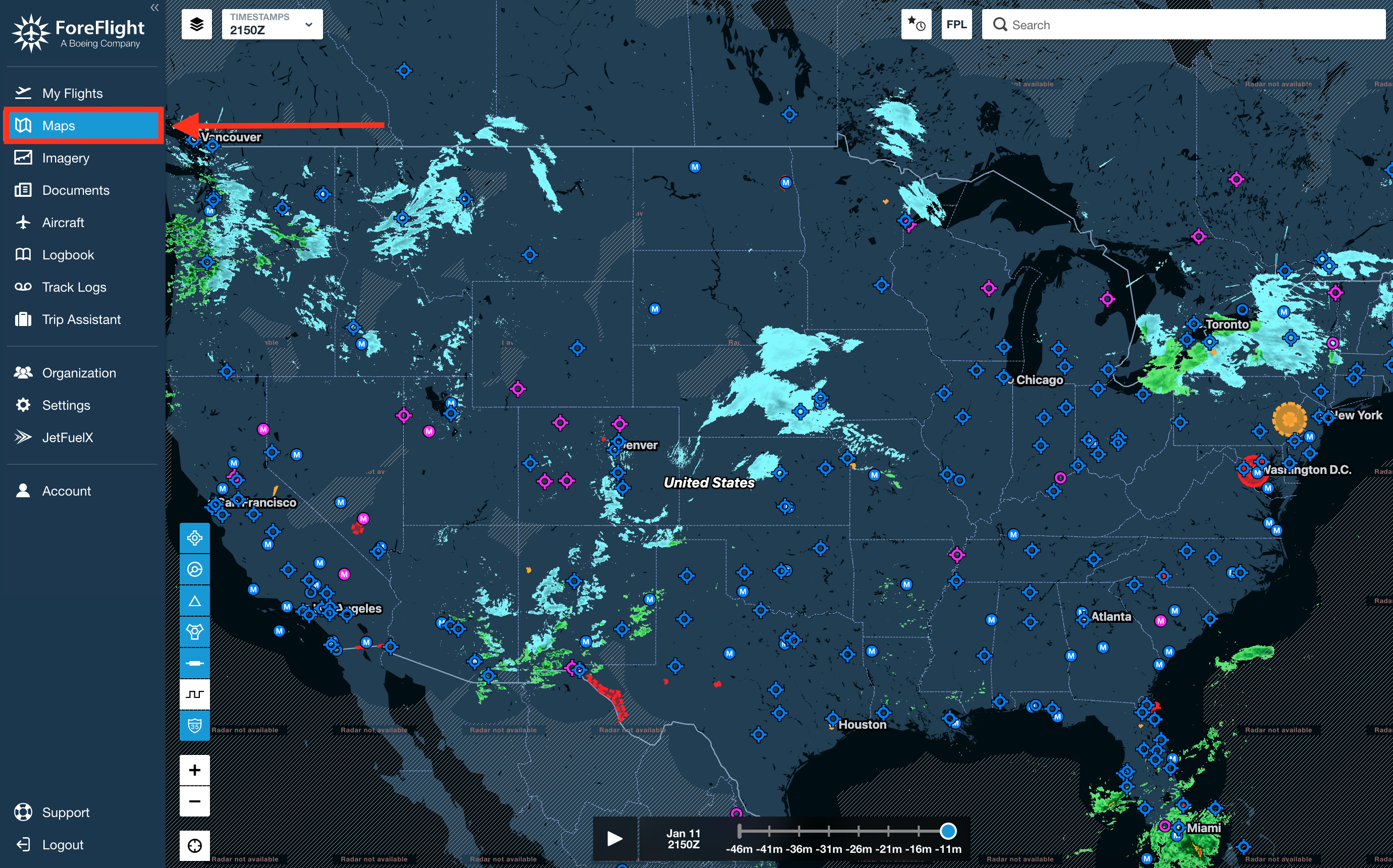

STEP 2: Click on the Maps page.

STEP 3: Click on an airport icon or search for the Airport ID using the search box.

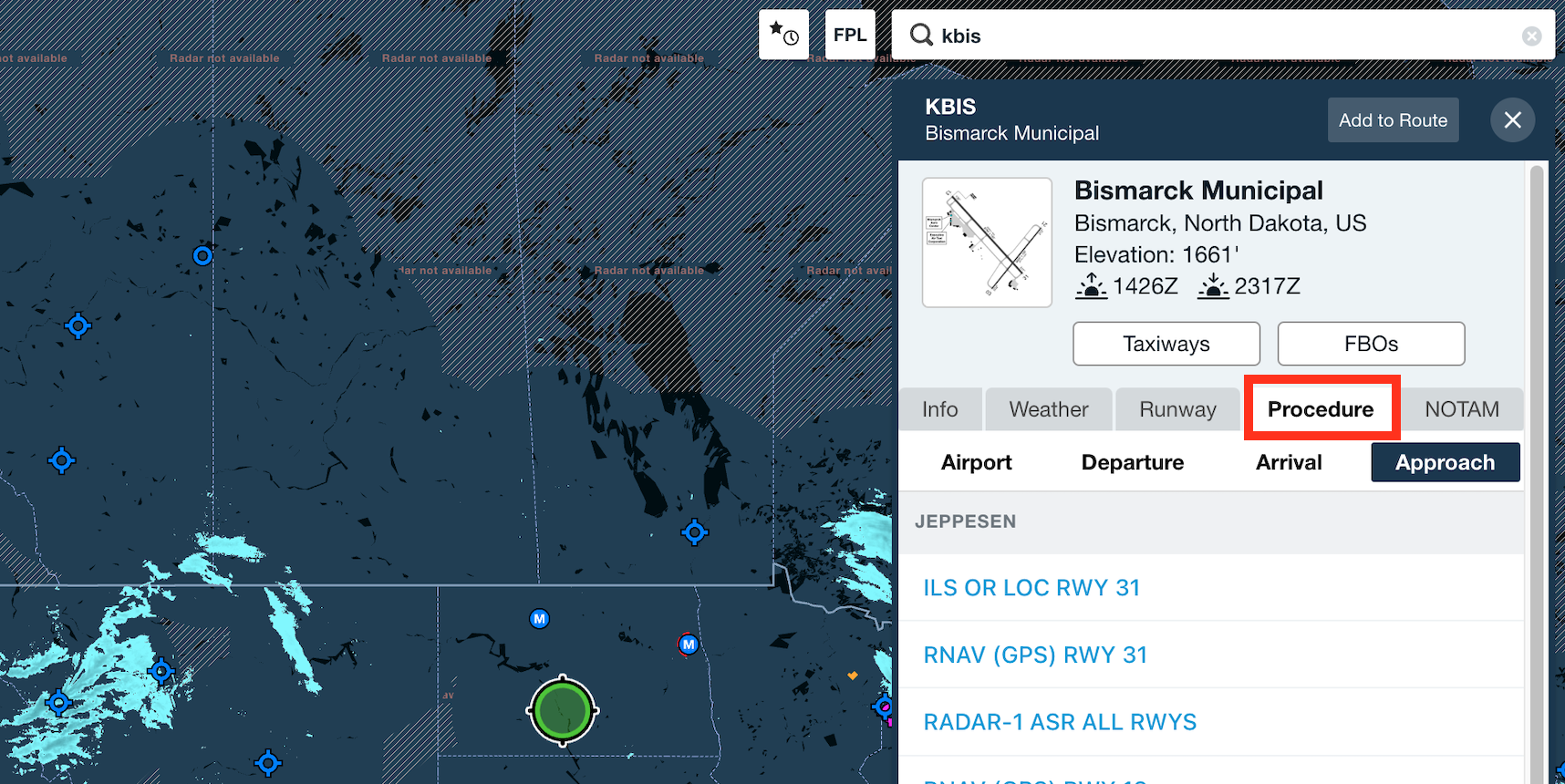

STEP 4: In the Airport popover, click on the Procedure tab.

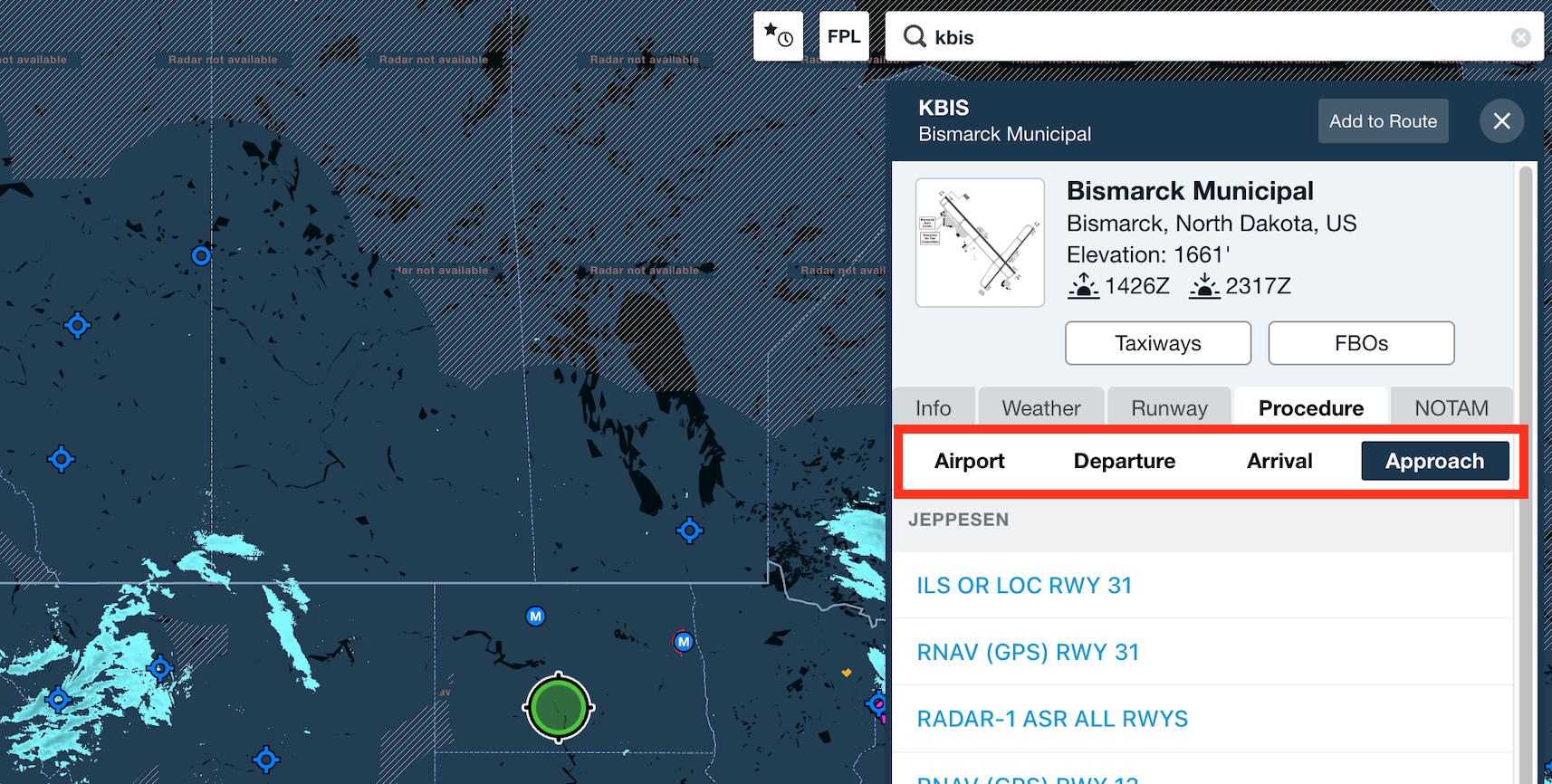

STEP 5: Click on the type of chart to view: Airport, Departure, Arrival, or Approach.

STEP 6: Click on a chart in the list to view it. Charts will open in a new browser tab.

Viewing Jeppesen Airway Manuals

Jeppesen Airway Manuals from the activated coverage are available on ForeFlight on the Web by following these steps:

STEP 1: Sign in to ForeFlight on the Web.

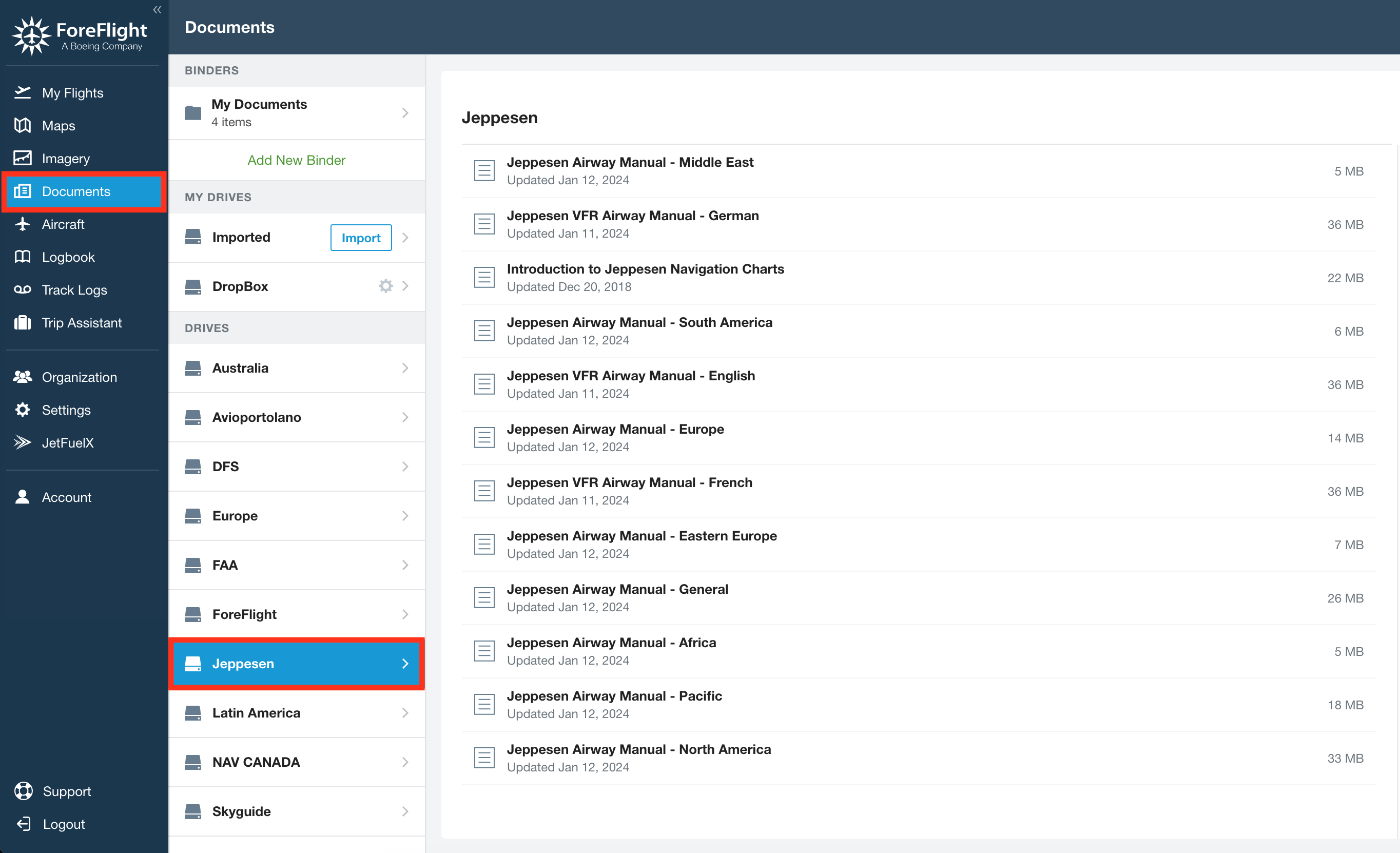

STEP 2: Click on the Documents page.

STEP 3: Click on the Jeppesen drive. The Airway Manuals will be listed in the right-hand column.

Jeppesen Airway Manuals in ForeFlight on the Web
